Light Duty Floor Expansion Joint

The Light Duty Floor Expansion Joint Cover is ideal for installations where tile bedding is unnecessary, concrete cutting to create a rebate isn’t permitted, or only a minimal rebate is available. Accomodating up to 60mm of movement, it is perfectly suited for supermarket, retail tenancy, office and commercial flooring applications. Heavy-duty stainless steel centre bars offer excellent load-bearing performance. Available with a selection of cover plates in aluminium, stainless steel, or P5 grip rated finish for added slip resistance.

View the Data Sheet (PDF)

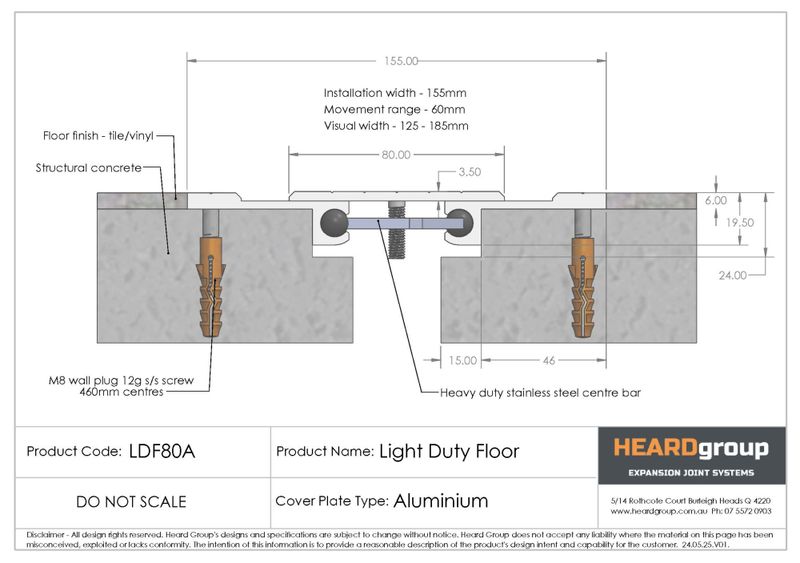

LIGHT DUTY FLOOR JOINT

Product Codes:

LDF80A (80mm wide aluminium cover plate)
LDF80SS (80mm wide stainless steel cover plate)
LDF80SSP5 (80mm wide stainless steel P5 grip rated cover plate)
LDF100SS (100mm wide stainless steel cover plate)
LDF100SSP5 (100mm wide stainless steel P5 grip rated cover plate)

Size: 4.8m modular length

Movement Range: 60mm

Compatible Floor Finishes:

Carpet
Vinyl
Tiles
Polished Concrete
Epoxy

View the Spec Sheet (PDF)

Installation Guide

PHOTO GALLERY

CLICK IMAGES TO VIEW

: Light Duty Floor Joint installed in vinyl floor

: Light Duty Floor Joint installed in carpet floor

: Light Duty Floor Joint installed in tiled floor
