Heavy Duty Floor Expansion Joint
The Heavy Duty Floor Joint is engineered for demanding floor environments such as warehouses and vehicle loading bays. It comes standard with 5mm thick heavy duty 304 stainless steel cover plates and stainless steel centre bars, ensuring exceptional durability and resistance to wear. Designed to withstand heavy loads from trucks, forklifts and industrial service equipment, this expansion joint offers a robust solution where strength and longevity are critical.
Photo Gallery

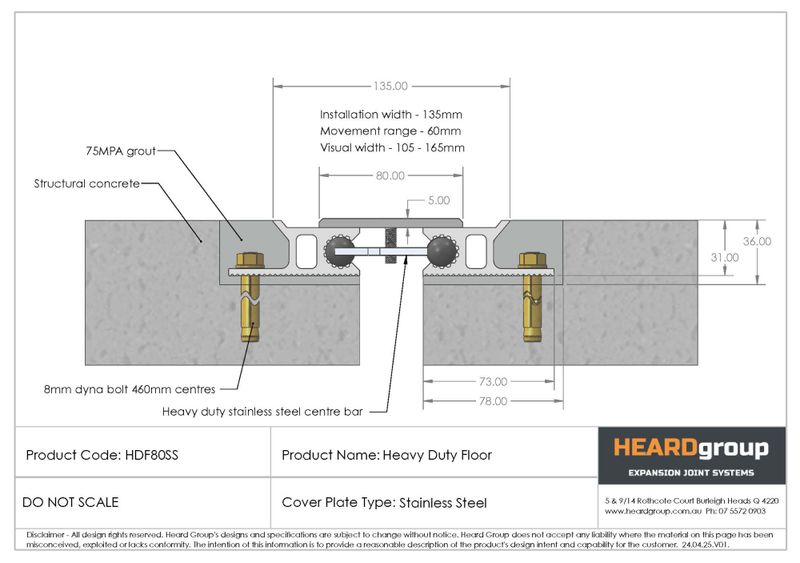

Heavy DUTY FLOOR JOINT
Product Codes:
- HDF80SS (80mm wide stainless steel cover plate)
- HDF80SSP5 (80mm wide stainless steel P5 grip rated cover plate)
- HDF100SS (100mm wide stainless steel cover plate)
- HDF100SSP5 (100mm wide stainless steel P5 grip rated cover plate)
Size: 4.8m modular length
Movement Range: 60mm
Compatible Floor Finishes:
- Vinyl
- Carpet
- Tile
- Polished concrete
- Epoxy
Installation Guide
PHOTO GALLERY
CLICK IMAGES TO VIEW
-
- PNSX installed as expansion joint bedding for the Heavy Duty Floor Expansion Joint Cover at Ikea Logan
-
- Heavy Duty Floor Joint installed in outdoor tile walkway & piazza
-
- Heavy Duty Floor Expansion Joint Cover installed into polished concrete floor
-
- Heavy Duty Floor Expansion Joint Cover
-
- Heavy Duty Floor Expansion Joint Cover
